R-121 - Royer Labs

Ribbon mic.

Available on demand, contact us!
R-121 - Royer Labs R-121 - Royer Labs

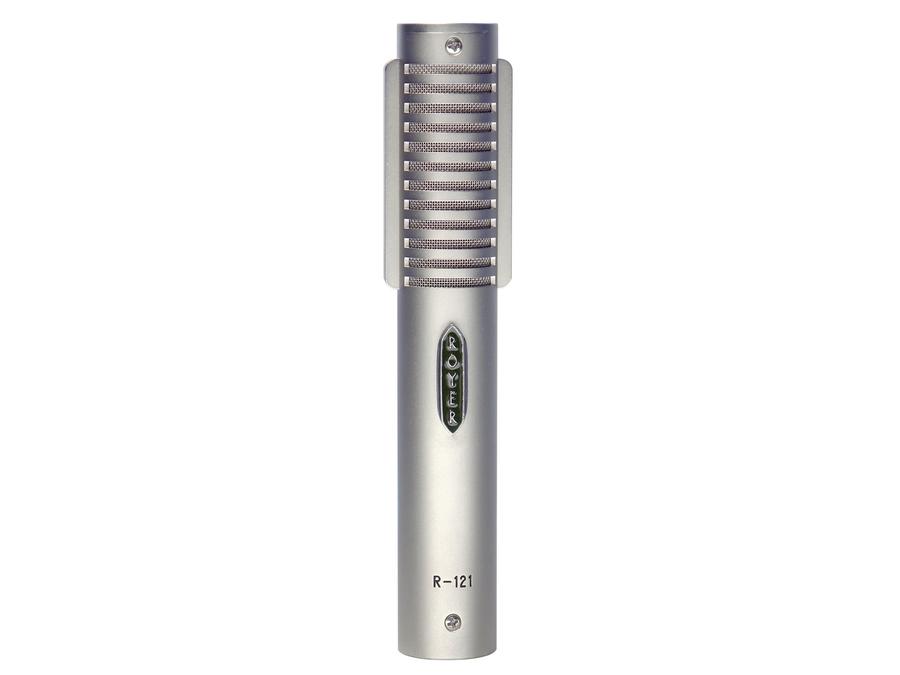

The R-121 is a thoroughly modern ribbon microphone designed for today’s studio and live environments, exhibiting a flat frequency response and well balanced, panoramic soundfield. Its ability to withstand 135 dB SPL makes it ideal for applications that were previously considered off limits to ribbon microphones.

New developments in magnetics, materials and mechanical construction have made the R-121 possible. The ribbon element’s smooth frequency response and phase linearity,coupled with sensitivity levels surpassing those of “classic” ribbons, make this microphone an ideal choice for digital recording. The R-121 delivers a consistent, natural acoustical performance with stunning realism. In addition, its figure-8 pattern conveys superb ambience and depth when used for room miking applications, orchestral and choral recordings.

The heart of the R-121 is its low mass, 2.5-micron, pure (99.99%) aluminum ribbon element. The R-121’s unique, patented offset-ribbon transducer assembly incorporates rare earth Neodymium magnets in a specially designed flux-frame, which forms a powerful magnetic field while reducing unwanted stray magnetic radiation. The R-121’s offset-ribbon design positions the ribbon element towards the front of the microphone body, which allows for higher SPL handling on the front (logo) side and the option of a brighter response when recording lower SPL sound sources on the back side (3 feet and closer; phase reversed in this position).



  • High SPL capabilities for electric guitar and percussion
  • No internal active electronics to overload or produce distortion up to maximum SPL rating
  • Extremely low residual noise
  • Ribbon element unaffected by heat or humidity
  • Absence of high frequency peaks, “ringing” and phase shifts
  • Equal sensitivity from front or back of element



  • Close miking
  • Electric & acoustic guitar
  • Drum overheads, kick drum (see manual for position), room miking
  • Percussion instruments
  • Brass, horn sections
  • Strings – solo & sections
  • Acoustic piano
  • Vocals
  • Live Events – recording and sound reinforcement


Technical Specifications

  • Acoustic Operating Principle: Electrodynamic pressure gradient
  • Polar Pattern: Figure-8
  • Generating Element: 2.5-micron aluminum ribbon
  • Magnets: Rare Earth Neodymium
  • Frequency Response: 30 – 15 000 Hz ± 3dB
  • Sensitivity: -50 dBv Re. 1v/pa
  • Output Impedance: 300 Ohms @ 1K (nominal)
  • Rated Load Impedance: 1500 Ohms
  • Maximum SPL: 135dB
  • Output Connector: Male XLR 3 pin (Pin 2 Hot)
  • Dimensions: 158mm L X 25mm W (6.25” L X 1” W)
  • Weight: 244g (8.6 oz )
  • Finish: Burnished Satin Nickel/Matte Black Chrome (optional)

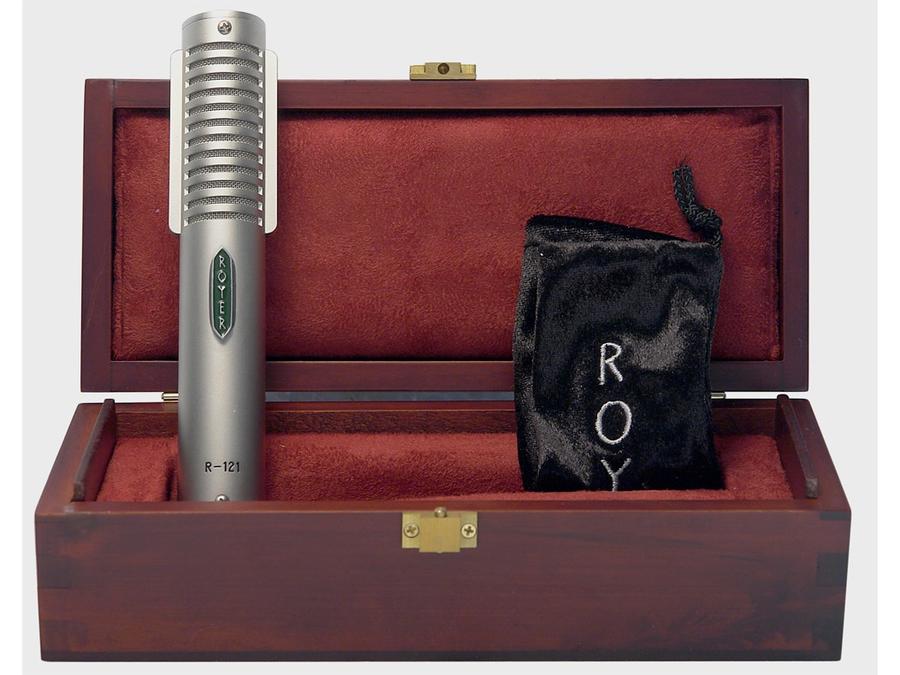

  • Accessories: Protective wood case, mic sock
  • Optional Accessories: Pop screen, shock mount
