Remote 4 - Red Panda
Remote switch with 4 modes to access presets and pedal functions.

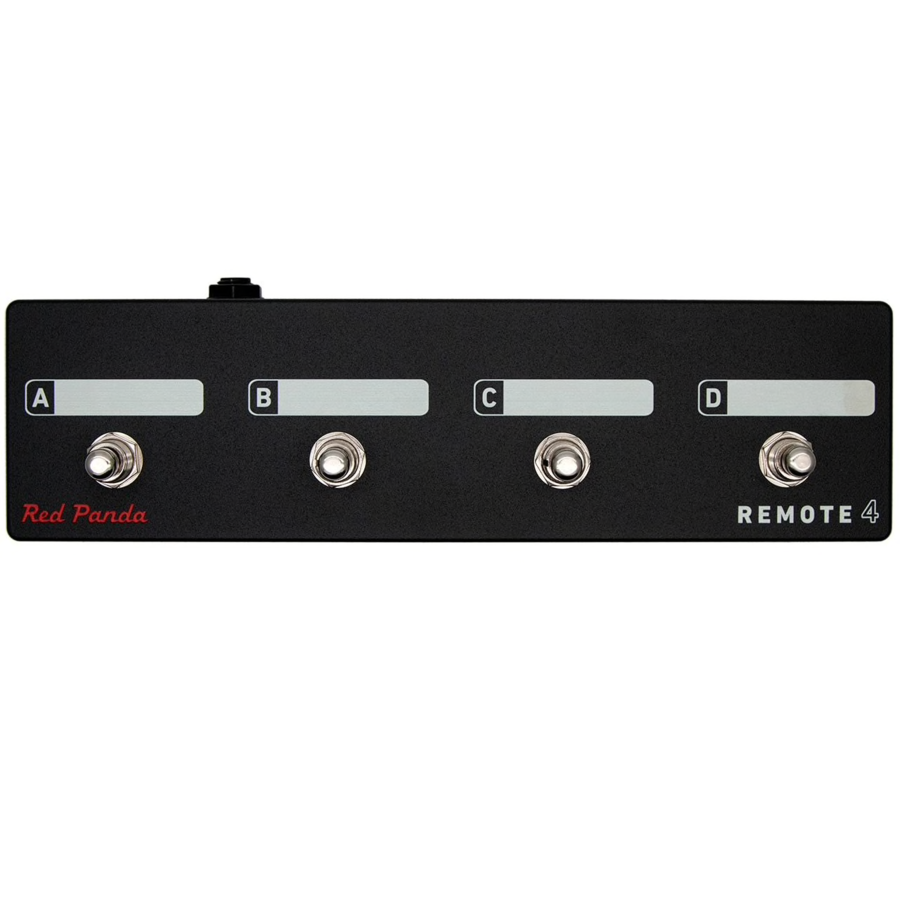

Scribble strips above each switch can be labeled with a Sharpie and erased using isopropyl alcohol.

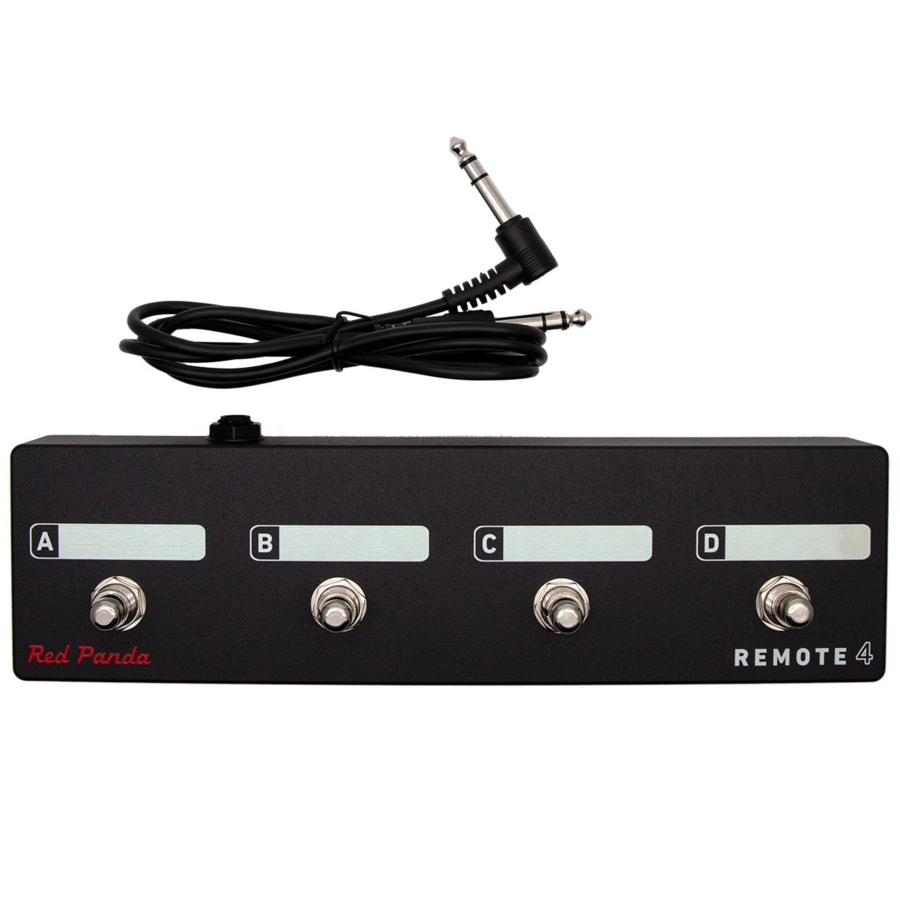

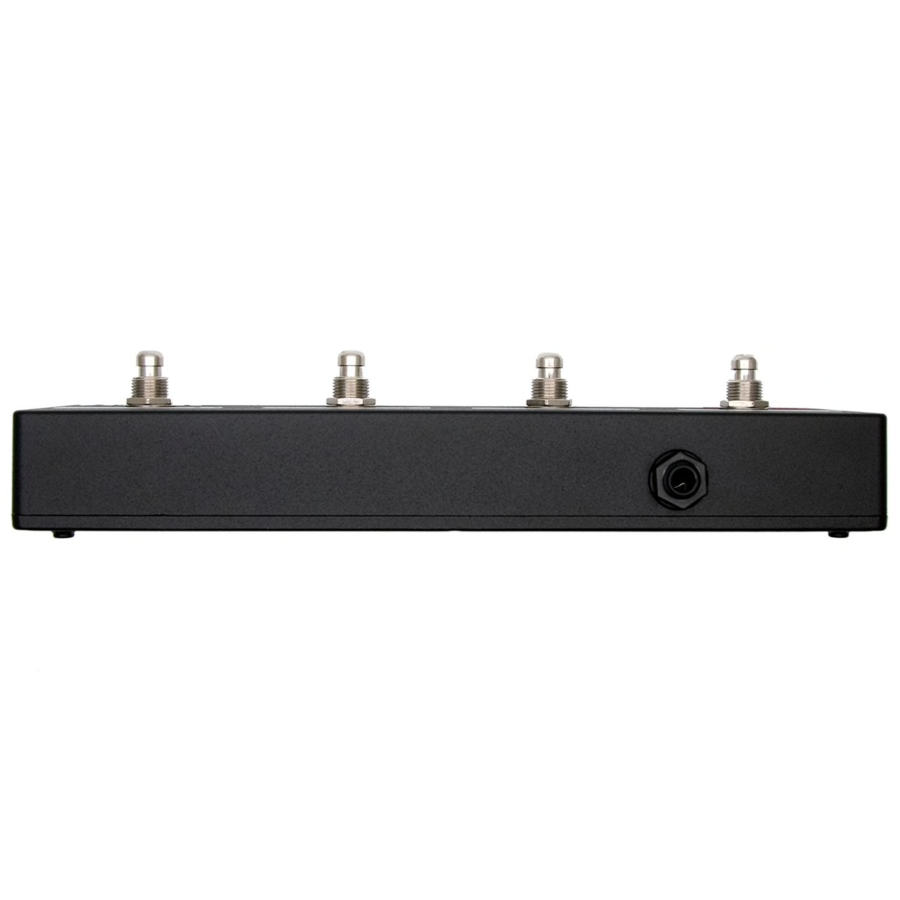

Connects to the Tensor or Particle v2 via a 1/4" TRS cable (included). The Tensor firmware needs to be version 1.1 or later. The Remote 4 does not require power.
Size: 10" x 2.75" x 2.25" high
Remote switch modes
|1||A||Preset 1 (hold to save)|
|B||Preset 2 (hold to save)|
|C||Preset 3 (hold to save)|
|D||Preset 4 (hold to save)|
|C||Preset 1 (hold to save)|
|D||Preset 2 (hold to save)|
|3||A||Record / Overdub|
|B||Play / Stop|
|D||Toggle TIME & PITCH (tap) Toggle SPEED (double tap)|
|4||A||Toggle SPEED knob|
|B||Toggle TIME knob|
|C||Toggle PITCH knob|
|D||Toggle RAND knob|
Loop Sampler (Remote Mode 3)
Mode 3 is designed to use the Tensor as a loop sampler with live loop manipulation. Switches A-C control loop record, overdub, play, and retrigger functions. Switch 4 toggles between the current knob settings and the default (normal playback settings). For example, you can set SPEED to reverse and PITCH to -1 octave for instant access to reverse and half-speed effects. See the user's manual for complete details.
Configuring the Remote Switch:
Start with the pedal powered on and nothing plugged into the CTRL port.
Hold the right footswitch while plugging in the remote switch. The right LED will blink yellow 3 times to indicate it is in CTRL configuration mode. You can release the right footswitch and begin configuration immediately.
Press one of the buttons on the remote switch to select a mode.
Hold the right footswitch for 2 seconds to save the configuration. The right LED will blink green to
indicate that the configuration has been saved.
